142 Quick Set Steel Putty

PRODUCT DATA

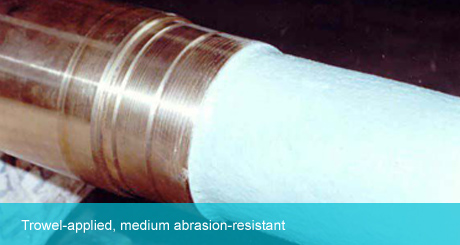

Rezorect 142 Quick Set Steel Putty is a trowel-applied, medium abrasion resistant putty, designed to make quick repairs to steel parts and equipment. It protects against entrained particulate abrasion and wearing surface abrasion and is formulated with the maximum loading of specially sized and treated steel particles.

The combination of the steel particle reinforcement, with the corrosion resistant epoxy resin alloy, offers maximum performance in the areas of abrasion, friction reduction and turn-around time.

142 Quick Set Steel Putty may be post cured by several methods to accelerate complete cure, thus placing coated objects in service in a much shorter time.

The non-sagging, non-shrinking properties permit application to vertical surfaces, cavities and intricate parts. When cured, it may be machined with standard tools.

ADVANTAGES

  • Only the highest quality resins and reinforcements are used to produce Rezorect materials assuring the applicator of long lasting successful applications, when correctly applied.
  • Will not sag or run when applied to vertical surfaces.
  • 100% solids and will not shrink.
  • When used for non-corrosion service, single coat applications are possible.
  • Specially treated and sized steel reinforcements create a smooth and continuous surface.
  • User friendly material is easy to mix and apply, reducing application time and returning equipment to service with shorter turnaround.
  • Long lasting protection to ferrous metals..
  • Putty sets within 10 minutes, hard within 1 hour.
  • Advanced adhesion properties assure long lasting protection without fear of undercutting or delamination.

APPLICATIONS

  • Hoppers
  • Bins
  • Chutes
  • Pump Volutes
  • Cooling Water Pumps
  • Valves
  • Slurry Equipment
  • Mix Tanks
  • Condensers
  • Water Boxes
  • Jigs
  • Pump Rotating Elements
  • Pipe
  • Pipe Fittings
  • Scrubbers
  • Filters
  • Discharge Doors
  • Cone Bottoms
  • Shakes
  • Conveyers
  • Spiral Separators
  • Flotation Cells

TECHNICAL DATA (simplified)

FinishSmooth
ColorGray
ComponentsTwo (2)
Curing MechanismChemical Reaction
Sag Resistance@ 24C(75F) by 6mm(1/4 in)Thickness--No Sag
Theoretical Coverage@ 1mm 0.38m2 per 1kg of product
VOC None
Volume Solids100%
Service Temp Limits93C(200F) Immersed 177C(350F) Dry
Flash Point >93C(200F)
Compressive StrengthASTM D-695 844Kg/cm2 (12,000psi)
Flexural StrengthASTM D-790 570Kg/cm2 (8100psi)
Tensile StrengthASTM D-638 260Kg/cm2 (3700psi)
Abrasive ResistanceASTM D-4060 1000 Cycles, 1000 Grm load, CS/10 wheel, Taber abraser, 153 mg wgt loss
Adhesive Tensile ShearASTM D-1002 Steel 182Kg/cm2 (2600psi)
Concrete - Concrete Failure
