134 Mighty Metal

PRODUCT DATA

Rezorect 134 Mighty Metal is the hardest and toughest epoxy alloy metal repair, developed by Rezorect chemists and engineers. It boasts high compressive strengths in excess of 20,000 psi when cured at ambient temperatures, after 7 days, or in excess of 25,000 psi when post cured for 4 hours (after initial gelling), at 200F (93C).

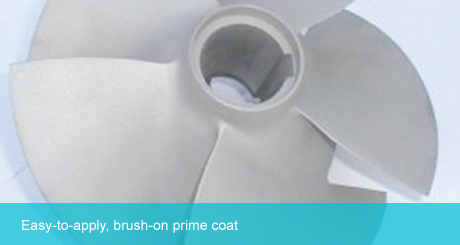

134 Mighty Metal is the ideal material for repairing metal parts subjected to high shock loads or extreme pressures. Post curing not only increases compressive strength but also enables repaired objects to be returned to service in a relatively short period of time. The special metal alloy filler makes the material strong and hard and the use of tungsten carbide or diamond tooling is required for machining.

Its non-sagging, non-shrinking properties permit application to vertical surfaces, cavities and intricate parts.

ADVANTAGES

  • Only the highest quality resins and reinforcements are used to produce Rezorect materials, assuring long lasting successful applications, when correctly applied.
  • Will not sag or run when applied to vertical surfaces.
  • 100% solids and will not shrink.
  • When used for non-corrosion service, single coat applications are possible.
  • Specially treated and sized reinforcements create a smooth and continuous hard surface.
  • User friendly material is easy to mix and apply, reducing application time and returning equipment to service with shorter turnaround.
  • Long lasting repairs to ferrous metals.
  • Advanced adhesion properties assure long lasting protection without fear of undercutting or delamination.

TECHNICAL DATA (simplified)

FinishSmooth
ColorGray
ComponentsTwo (2)
Curing MechanismChemical Reaction
Sag Resistance@ 24C(75F)by 6mm(1/4 in)Thickness--No Sag
Theoretical Coverage@ 1mm 0.38m2 per 1 kg of product
VOCNone
Volume Solids100%
Service Temp Limits93C(200F) Immersed 177C(350F) Dry
Flash Point>93C(200F)
Compressive Strength Ambient Cure: ASTM D-695 >1406Kg/cm2 (>20,000psi)
Post Cure: ASTM D-695 >1758Kg/cm2 (>25,000psi)
Flexural StrengthASTM D-790 513Kg/cm2 (7300psi)
Tensile StrengthASTM D-638 379Kg/cm2 (5400psi)
Abrasive ResistanceASTM D-4060 1000 Cycles, 1000 Grm load
CS/10 wheel, Taber abraser, 68 mg wgt loss
Adhesive Tensile ShearASTM D-1002 Steel 182Kg/cm2 (2600psi)
Concrete - Concrete Failure
