122 Brushable Ceramic

PRODUCT DATA

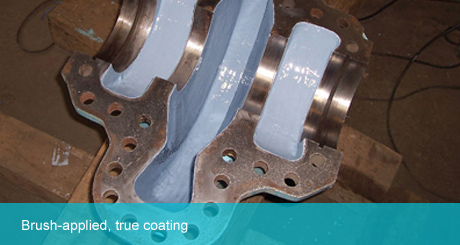

Rezorect 122 Brushable Ceramic is a true coating which is brush-applied, yielding a smooth high gloss surface. 122 Brushable Ceramic protects against entrained particulate abrasion and wearing surface abrasion. It possesses maximum loading of specially sized and treated ceramic particles.

The combination of the ceramic reinforcement, with the corrosion resistant epoxy resin alloy, offers maximum performance in the areas of corrosion, abrasion, friction reduction and turn-around time. While designed to be cured at ambient temperature, when practical, 122 Brushable Ceramic may be post cured by several methods to accelerate complete cure, thus placing coated objects in service in a much shorter time.

The non-sagging, non-shrinking properties permit application to vertical surfaces, cavities and intricate parts. When cured, it may be machined with tungsten carbide or diamond tools.

ADVANTAGES

  • Only the highest quality resins and reinforcements are used to produce Rezorect materials, assuring the applicator of long lasting successful applications, when correctly applied.
  • Will not sag or run when applied to vertical surfaces.
  • 100% solids and will not shrink.
  • Single coat applications are possible.
  • Special resin alloy is highly effective in resisting thermal and mechanical shock.
  • User friendly 122 Brushable Ceramic is easy to mix and apply, reducing application time and returning equipment to service with shorter turnaround.
  • Advanced adhesion properties assure long lasting protection without fear of undercutting or delamination.

APPLICATIONS

  • Hoppers
  • Bins
  • Chutes
  • Pump Volutes
  • Fan Casings
  • Valves
  • Slurry Equipment
  • Mix Tanks
  • Condenser
  • Water Boxes
  • Jigs
  • Pump Rotating Elements
  • Pipe
  • Pipe Fittings
  • Filters
  • Discharge Doors
  • Cone Bottoms
  • Shakes
  • Conveyers
  • Spiral Separators
  • Flotation Cells

TECHNICAL DATA (simplified)

FinishSmooth
ColorBlack
ComponentsTwo (2)
Curing MechanismChemical Reaction
Sag Resistance@ 24C(75F) 15 mil Thickness--No Sag
Theoretical Coverage@ 1mm 0.38 m2/per lkg of product
VOCNone
Volume Solids100%
Service Temp Limits93C(200F)Immersed 177C(350F) Dry
Flash Point>93C(200F)
Compressive StrengthASTM D-695 1068Kg/Cm2 (15,200psi)
Flexural StrengthASTM D-790 570Kg/Cm2 (8100psi)
Tensile StrengthASTM D-638 260Kg/Cm2 (3700psi)
Abrasive ResistanceASTM D-4060 1000 Cycles, 1000 Grm load
CS/10 wheel, Taber abraser, 108 mg wgt loss
Adhesive Tensile ShearASTM D-1002 Steel 200Kg/Cm2 (2850psi)
Concrete - Concrete Failure
